VRF Systems Indoor Unit Ceiling

Download :
Catalog

Model

220-240V Single-Phase
ABHA30GATH
ABHA36GATH
ABHA45GATH
ABHA54GATH

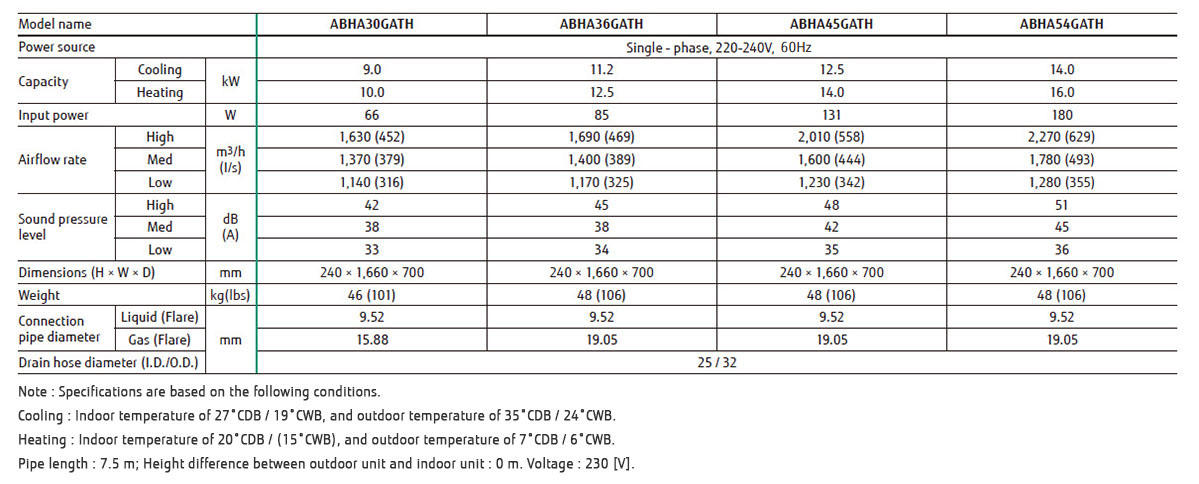

Specifications

Dimensions

Feature

Installation

Open

General installation pattern which suspends the indoor unit from the ceiling.

Concealed

Installation pattern where part of the indoor unit is embedded into the ceiling.

Wall mounted

Installation which fixes the indoor unit to the wall by the use of wall brackets (Locally purchased). This type of installation can be used when the ceiling space is insufficient.

Double auto swing and wide airflow

Auto airflow direction and auto swing

Right and left

5 steps selectable

Up and down

4 steps selectable

Long airflow

Long Airflow ensures comfort to every corner of a large room.

High power DC fan motor

  • High power
  • Wide rotation range
  • High efficiency

Improvement of airflow distribution

The louver design distributes air leaving a space between the chassis and the ceiling allowing far and wide air flow distribution.

Fresh air intake

Slim & Compact design

High lift drain pump

Optional drain pump unit allows flexible installation design.

Optional parts

Drain Pump Unit :
UTR-DPB24T
Flange :
UTD-RF204
