VRF Systems Indoor Unit Slim Duct / Slim Concealed Floor
Model
| 220-240V Single-Phase | |
|---|---|
| ARXD07GALH / ARXD07GATH | |
| ARXD09GALH / ARXD09GATH | |
| ARXD12GALH / ARXD12GATH | |
| ARXD14GALH / ARXD14GATH | |
| ARXD18GALH / ARXD18GATH | |
| ARXD24GALH / ARXD24GATH | |

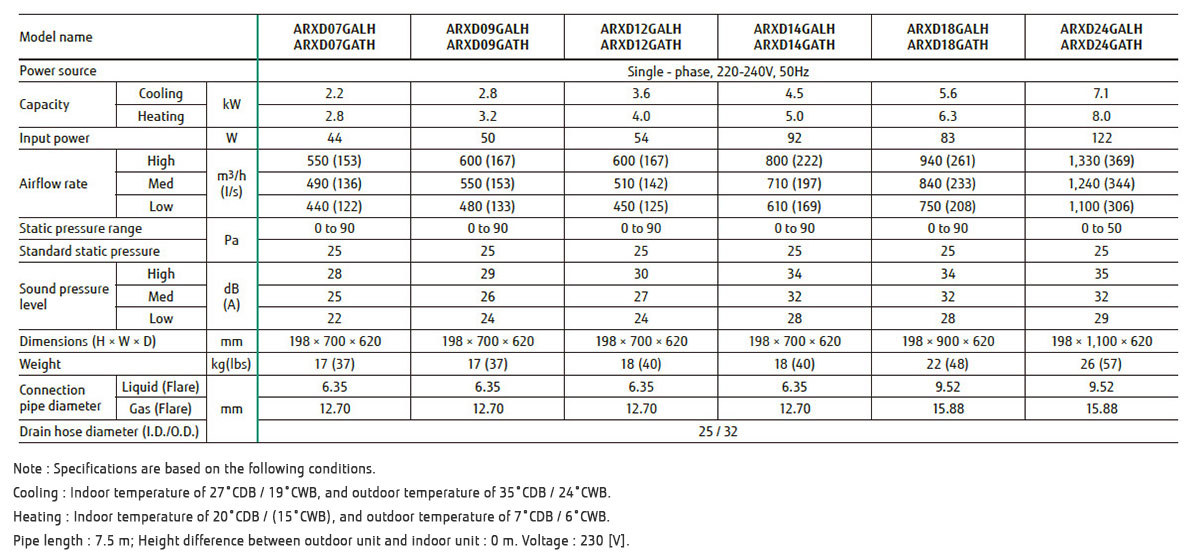

Specifications
Dimensions
Feature
Slim design
With a slim indoor design, this indoor can be installed in narrow ceiling spaces.
Selectable with a wide range of static pressure
*24 model is 0 to 50Pa
By using DC fan motor, it is possible to change of static pressure range 0 to 90Pa. The change of static pressure range is possible by remote controller.
Air-intake
Air intake direction can be selected to match the installation site.
High lift drain pump
Filter (Accessory)
ARXD07 / 09 / 12 / 14 / 18
ARXD24
Flexible installation
Auto Louver Grille Kit (Option)
Simple flat Auto Louver will provide comfort airflow and harmonize with luxury interior.
Optional parts
- Remote Sensor Unit :
- UTY-XSZX
- IR Receiver Unit :
- UTB-YWC
- Auto Louver Grille Kit :
- UTD-GXTA-W (for ARXD07/09/12/14GALH, ARXD07/09/12/14GATH)
UTD-GXTB-W (for ARXD18GALH, ARXD18GATH)
UTD-GXTC-W (for ARXD24GALH, ARXD24GATH)
