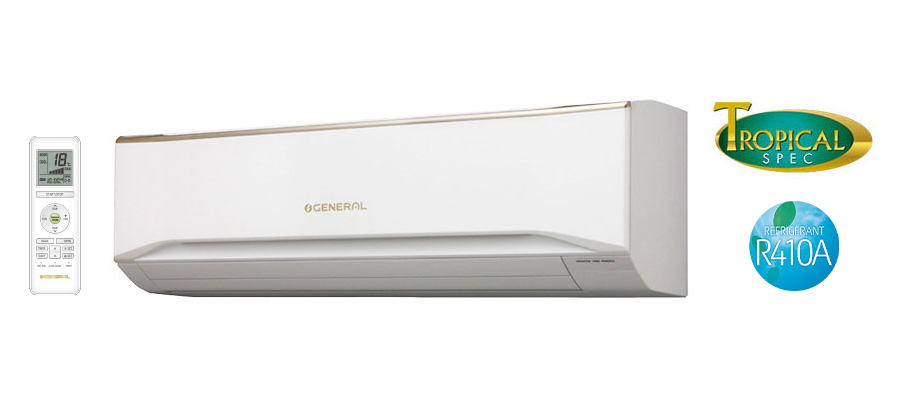

Unified Chassis
Indoor Unit :
ASGA18FUTD-M / ASGA24FUTD-M
ASGA30FUTC-M / ASGA36FUTC-M
ASGA18FUTE-M / ASGA24FUTE-M
Model
| 240-220V Single-Phase | |
|---|---|
| ASGA18FUTD-MZ | |
| ASGA24FUTD-MZ | |
| ASGA30FUTC-MZ | |
| ASGA36FUTC-MZ | |
| ASGA18FUTE-MZ | |
| ASGA24FUTE-MZ | |
Outdoor Unit :
AOGA18FUTDHM
AOGA24FUTDHM
AOGA30FUTCSM
AOGA36FUTCSM
AOGA18FUTERM
AOGA24FUTERM

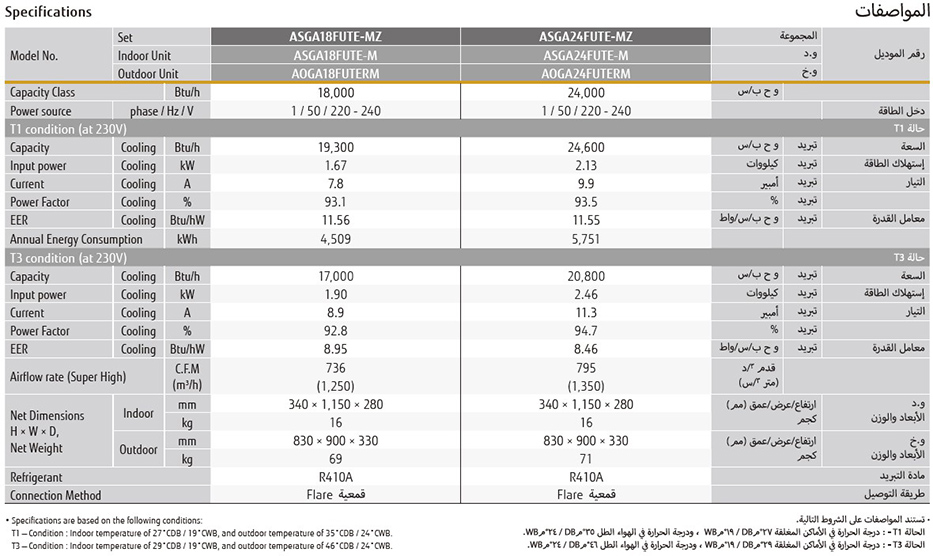

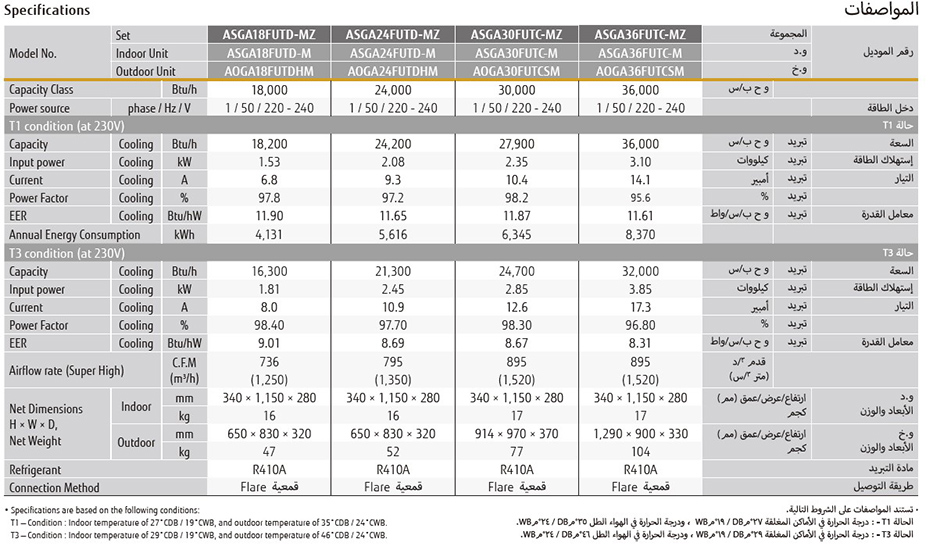

Specifications
Feature
Powerful airflow
Long-reach airflow up to 25m is provided by optimized airflow design.
25m Powerful mode (30 / 36 class)
Faster cooling
New models accelerate to cool air quicker to reach the setting temperature in the entire room than the current models do.
New Technology
Optimized airflow design
airflow 38%UP!*
- *
- 36 class
[1]
- Dual suction design Large airflow volume from dual suction
[2]
- New long cross-flow fan
[3]
- High output DC fan motor
6 Speed control
6-Speed fan control with added Powerful Cooling mode is provided.
Airflow 38*% up than current model (high mode)
- *
- 36 class
- *
- One touch powerful cooling mode: Continuous operation for 30 minutes at maximum air volume
Powerful cooling
Higher cooling capacity is achieved at the ambient temperature of 52°C condition.
High energy saving
Higher EER is achieved by the new technologies and new refrigerant.
- *
- 18 class
