VRF Systems Indoor Unit Lineup Wall Mount Wall Mount

Download :: Catalog

Model (EEV internal)

220-240V Single-Phase
ASHA07GACH / ASHA07GATH
ASHA09GACH / ASHA09GATH
ASHA12GACH / ASHA12GATH
ASHA14GACH / ASHA14GATH

Model (EEV external)

220-240V Single-Phase
ASHE07GACH
ASHE09GACH
ASHE12GACH
ASHE14GACH

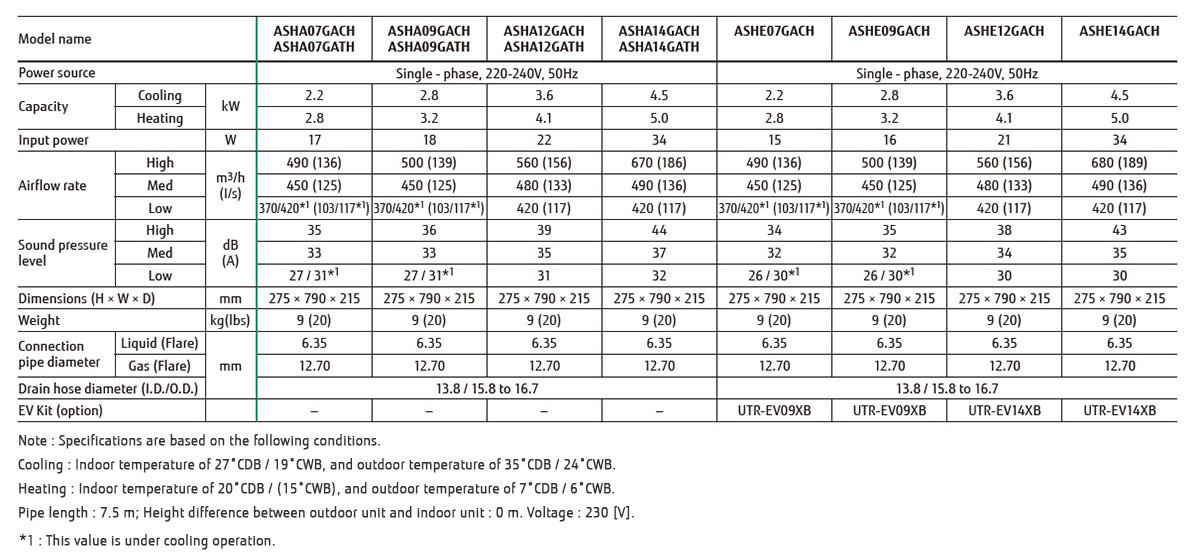

Specifications

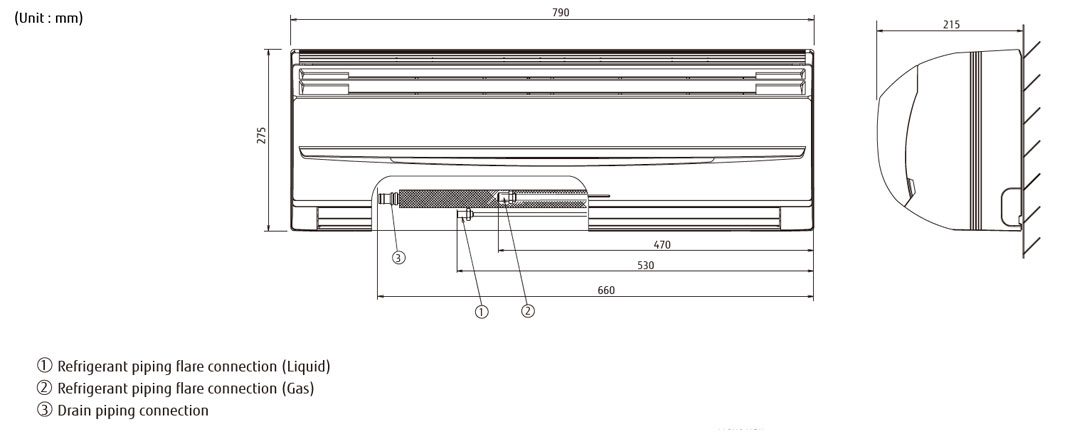

Dimensions

Feature

Filter features

High performance filter provides high quality air conditioning

Long-life* Ion Deodorization Filter

The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by the ultra-fine particle ceramic.

(*The filter can be used for approx. 3 years if it is washed under water to restore its surface action when it is dirty.)

Apple-catechin Filter

Fine dust, invisible mold spores, and harmful microorganisms are absorbed onto the filter by static electricity, and further growth is inhibited and deactivated by the polyphenol extracted from apples.

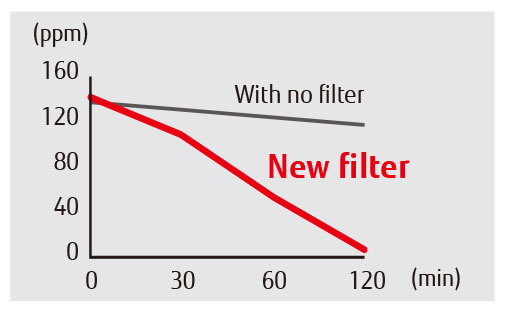

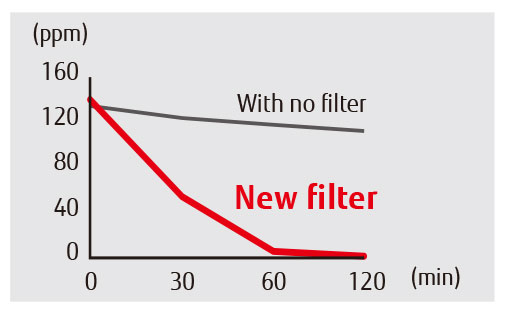

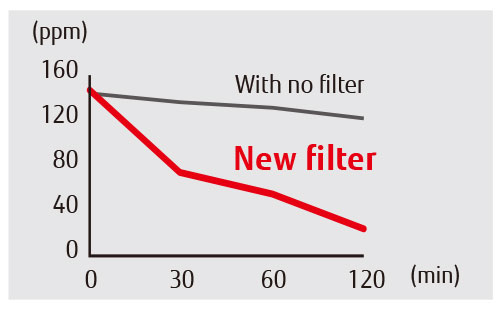

Deodorizing effect (Odor reduction rate)

High performance filters have been thoroughly tested by the Environmental Sanitary Inspection Center using an advanced Deodorization Test.

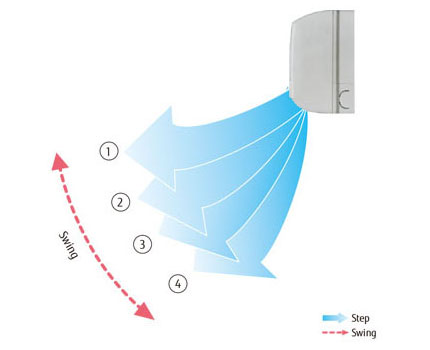

Auto swing louver

The Auto Swing Louver function ensures that the air direction corresponds to the mode selected.

Compact size

Powerful output even compact design

Though the indoor unit is compact, it features a large, high pressure cross fan (90mm diameter) in a centre mounted configuration and a Lambda type heat exchanger to provide plenty of power.

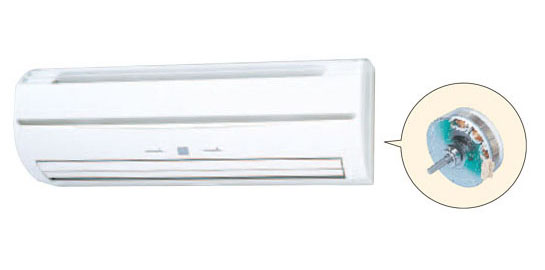

High power DC fan motor

High power
Wide rotation range
High efficiency
Compact size

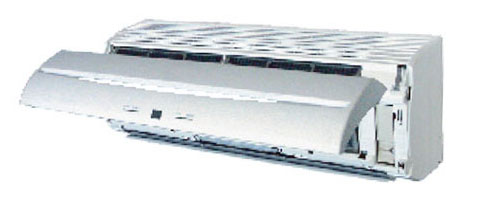

Easy maintenance

Open panel

Easy maintenance has been realized as the front panel can removed for easy access.

Symmetrical design

Symmetrical, clean design that suits all interiors.
