VRF Systems Indoor Unit Lineup Duct Slim Duct/Slim Concealed Floor

ARXD07 / ARXD09 / ARXD12 / ARXD14

ARXD07 / ARXD09 / ARXD12 / ARXD14

ARXD18

ARXD18

ARXD24

ARXD24

Download :
Catalog

Model

220-240V Single-Phase
ARXD07GALH / ARXD07GATH
ARXD09GALH / ARXD09GATH
ARXD12GALH / ARXD12GATH
ARXD14GALH / ARXD14GATH
ARXD18GALH / ARXD18GATH
ARXD24GALH / ARXD24GATH

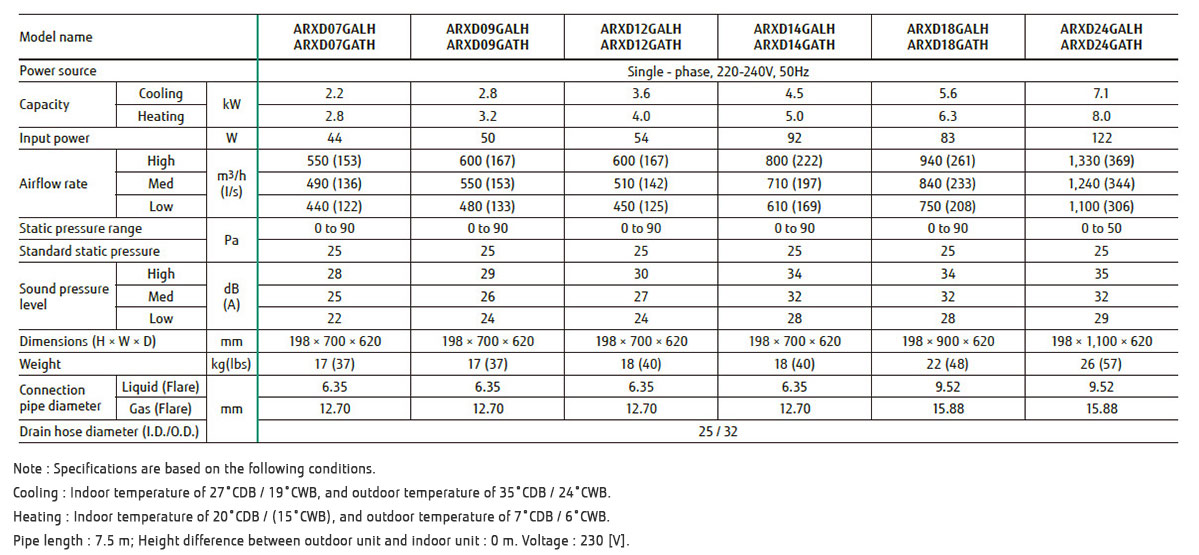

Specifications

Specifications img

Dimensions

Dimensions img

Feature

Slim design

Slim design img

With a slim indoor design, this indoor can be installed in narrow ceiling spaces.

Selectable with a wide range of static pressure

Selectable with a wide range of static pressure

*24 model is 0 to 50Pa

By using DC fan motor, it is possible to change of static pressure range 0 to 90Pa. The change of static pressure range is possible by remote controller.

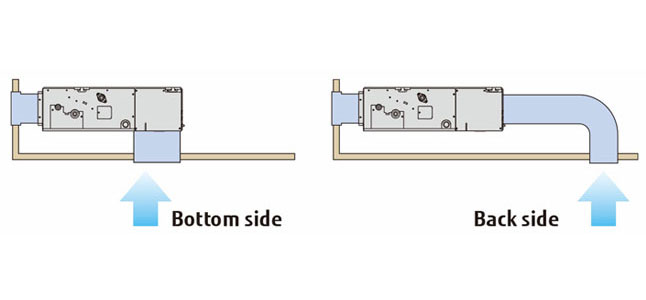

Air-intake

Air-intake img

Air intake direction can be selected to match the installation site.

High lift drain pump

High lift drain pump img

Filter (Accessory)

Filter (Accessory) img

ARXD07 / 09 / 12 / 14 / 18

Filter (Accessory) img

ARXD24

Flexible installation

Flexible installation img

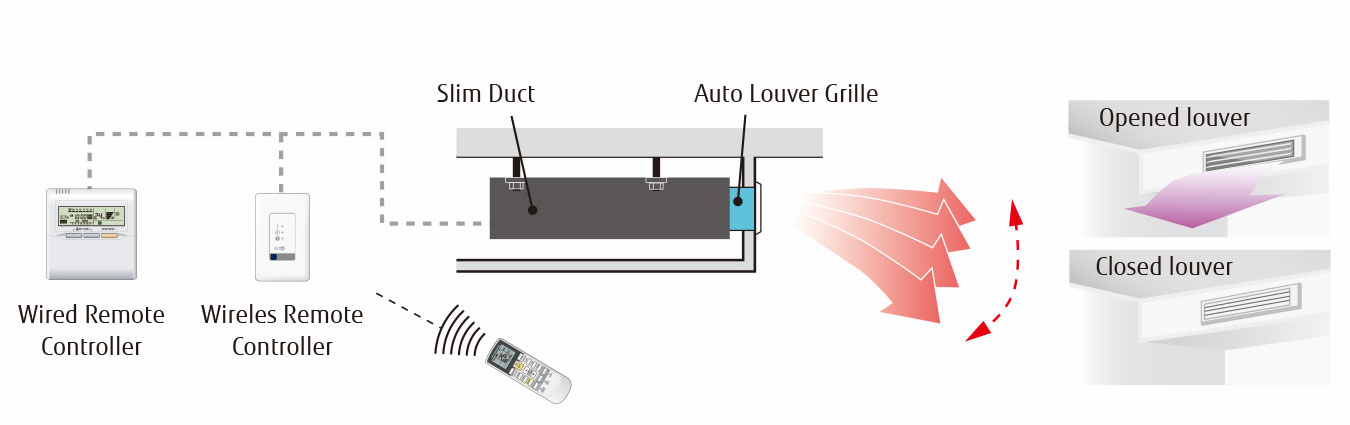

Auto Louver Grille Kit (Option)

Auto Louver Grille Kit (Option) img

Simple flat Auto Louver will provide comfort airflow and harmonize with luxury interior.

Optional parts

Remote Sensor Unit :
UTY-XSZX
IR Receiver Unit :
UTB-YWC
Auto Louver Grille Kit :
UTD-GXTA-W (for ARXD07/09/12/14GALH, ARXD07/09/12/14GATH)
UTD-GXTB-W (for ARXD18GALH, ARXD18GATH)
UTD-GXTC-W (for ARXD24GALH, ARXD24GATH)
