Model

220-240V Single-Phase
ARXA24GBLH / ARXA24GBTH
ARXA30GBLH / ARXA30GBTH
ARXA36GBLH / ARXA36GBTH
ARXA45GBLH / ARXA45GBTH

Specifications

Dimensions

*Service accessibility must be allowed for when installing the

Please consult the installation manual for the necessary service access size.

Slim & Compact design

In the case of bottom return air connection, not only does the indoor unit design allow for installation in a narrow ceiling space of up to 270mm, Further space savings have been achieved by mounting the electrical control box internally inside the chassis.

Easy maintenance

Structural improvement is attained by making the bottom panel two pieces, front and rear. The internal fan casing is also manufactured in two pieces, namely upper and lower. The maintenance of the motor and fan can be easily carried out by removing the rear panel and the lower part of the casing while leaving the main chassis installed.

Selectable with a wide range of static pressure

It is possible to change of static pressure range 0 to 150Pa.

Easy setting by using remote controller

The change of static pressure range is possible by remote controller

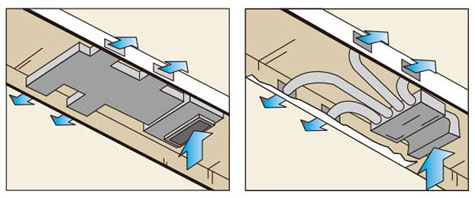

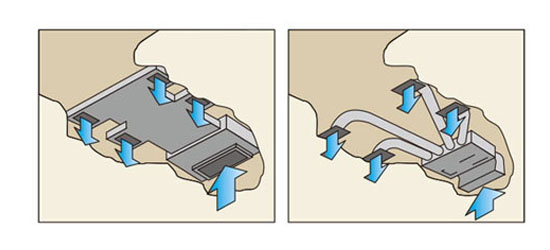

Can be installed for various location

It can be installed in such locations as high-rise condominiums by low static pressure design.

It can also be installed in wide spade when high static pressure is required, such as for offices.

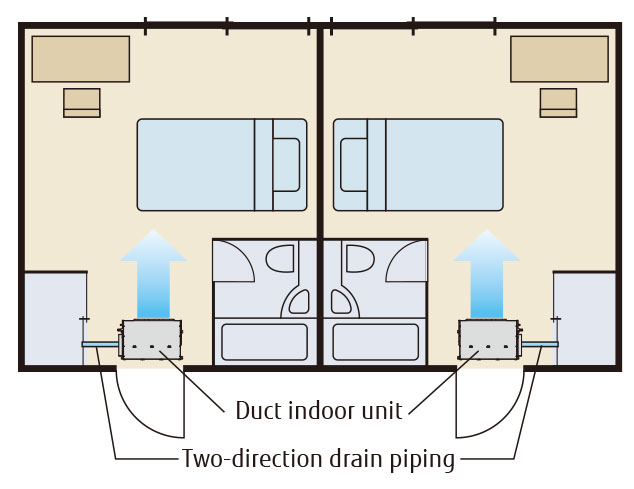

Two-direction drain piping

Optional parts

Remote Sensor Unit :

UTY-XSZX

Long Life Filter :

UTD-LF25NA

Flange (Square) :

UTD-SF045T

Flange (Round) :

UTD-RF204

IR Receiver Unit :

UTB-YWC

Drain Pump Unit :

UTZ-PX1NBA
