VRF Systems Indoor Unit Lineup Duct High Static Pressure Duct

High Static Pressure Duct img

ARXC36GBTH

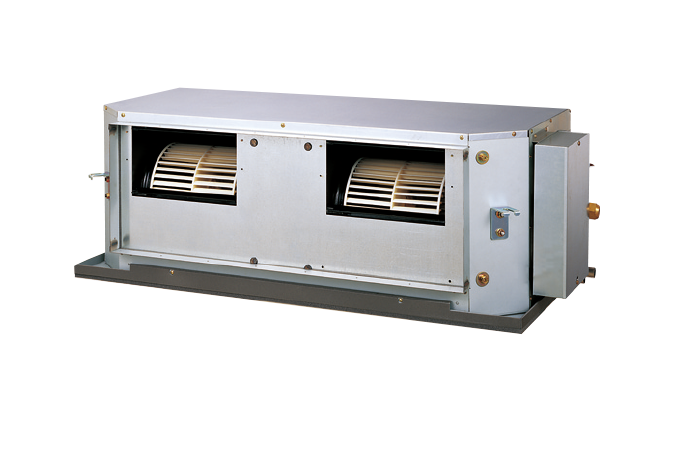

High Static Pressure Duct img

ARXC72GBTH / ARXC90GBTH

High Static Pressure Duct img

ARXC96GATH

Download :
Catalog

Model

220-240V Single-Phase
ARXC36GBTH
ARXC72GBTH
ARXC90GBTH
ARXC96GATH

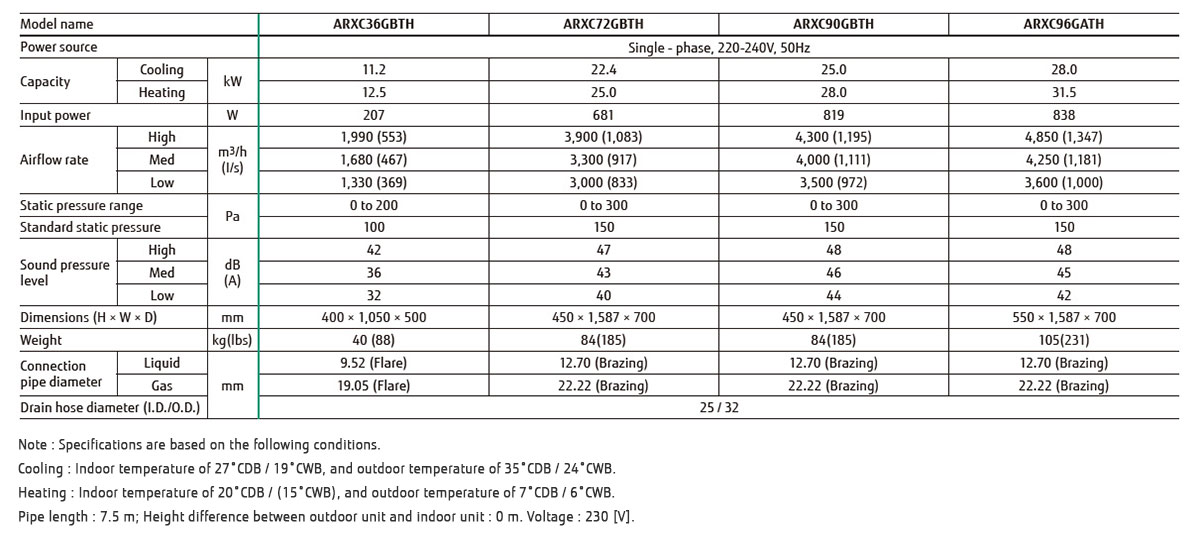

Specifications

Specifications img

Dimensions

Models: ARXC45 / ARXC60

Models: ARXC45 / ARXC60 img

Models: ARXC72 / ARXC90

Models: ARXC72 / ARXC90 img

Models: ARXC96

Models: ARXC96 img

Feature

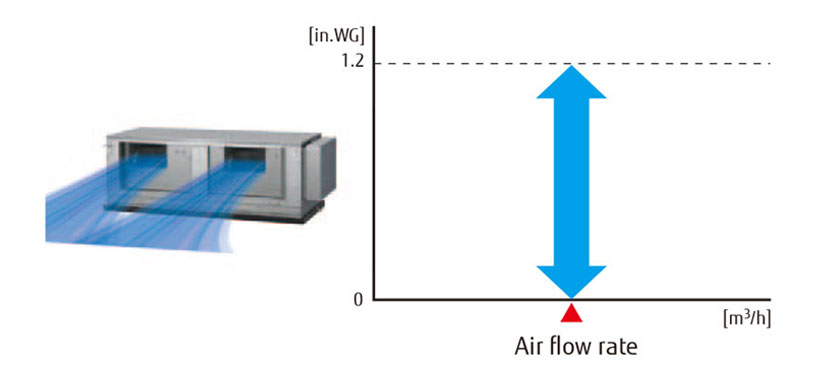

Static pressure selection

By using DC fan motor, it is possible to change static pressure range from 0 to 200Pa (ARXC36) / 300Pa (ARXC72 / 90 / 96).

Static pressure selection img

Low noise

Models : ARXC36

Cutting off the corners of the conventional indoor unit front panel and fan casing, has enabled less turbulent air flow. Low noise is realized by adopting a plastic case and a plastic fan.

Low noise img

ARXC36GBTH : Plastic fan [42dB(A)]

* Model : Material (At 100Pa : Actual noise measurement value)

Low energy consumption by high efficiency DC fan motor

Improved motor efficiency from previous model.

ARGC36 type

(ARGC36 type)

ARGC72 / 90 / 96 type

(ARGC72 / 90 / 96 type)

Easy installation (Compact size & Lightweight)

A compact size and lightweight indoor unit has been developed by reducing the basic chassis and the overall material weight.

Optional parts

Long-Life Filter :
UTD-LF60KA (For ARXC36GBTH)
IR Receiver Unit :
UTB-YWC
Remote Sensor Unit :
UTY-XSZX
