VRF Systems Indoor Unit Lineup Cassette 4-way Flow Cassette (Large type)

Download :: Catalog

Model

220-240V Single-Phase
AUXA18GALH
AUXA24GALH
AUXA30GALH
AUXA34GALH
AUXA36GALH
AUXA45GALH
AUXA54GALH

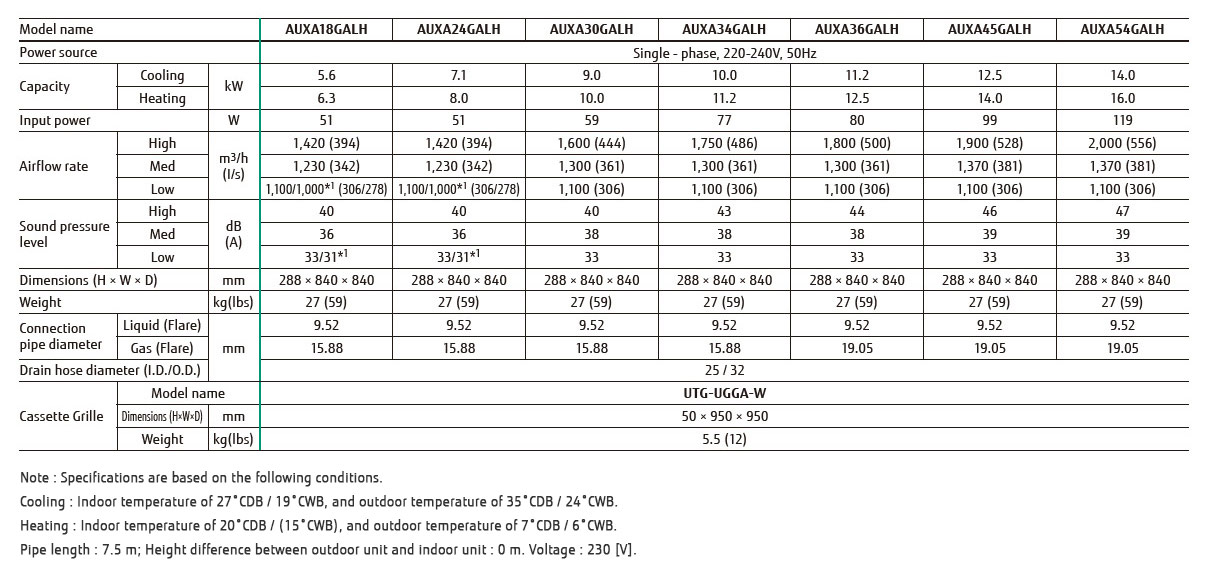

Specifications

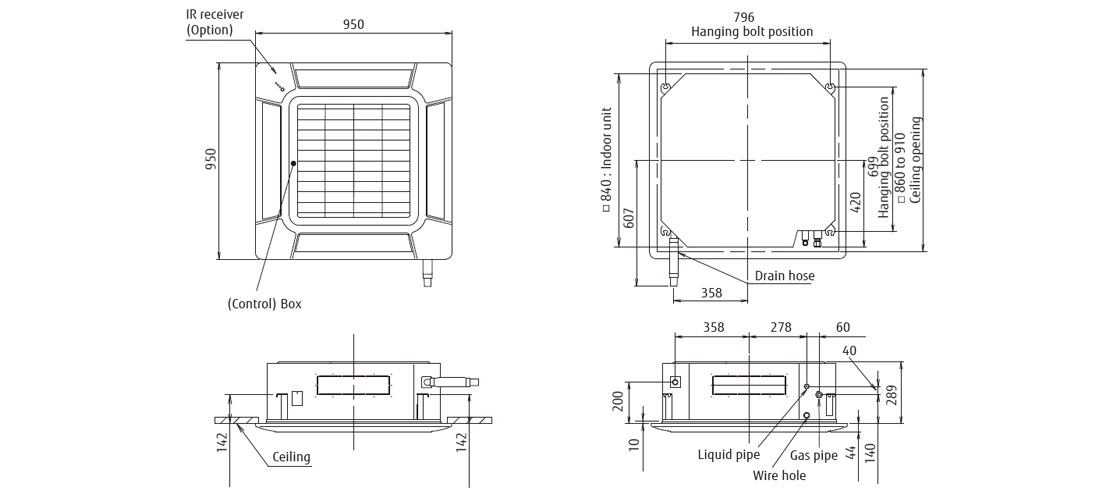

Dimensions

Feature

High efficiency turbo fan with 3-dimensional blade

High efficiency airflow distribution has been achieved by the introduction of a 3 dimensional blade which increases the air passing over the heat exchanger.

Improvement of the airflow distribution

The louver design distributes air leaving a space between the chassis and the ceiling allowing far and wide air flow distribution.

Much less temperature irregularity happens by spreading airflow widely

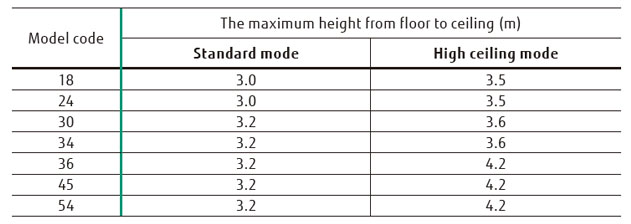

High ceiling mode

This cassette can be installed up to a height of 4.2m (36/45/54).

One way installation

High lift drain pump

Optional parts

IR Receiver Kit :: UTY-LRHGB1

Air Outlet Shutter Plate :: UTR-YDZK

Panel Spacer :: UTG-BKXA-W

Insulation Kit for High Humidity :: UTZ-KXRA

Wide Panel :: UTG-AKXA-W
