Download :

Catalog

Model (Slim type)

220-240V Single-Phase
AUXM018GTAH
AUXM024GTAH

Model (Large type)

220-240V Single-Phase
AUXK018GTAH
AUXK024GTAH
AUXK030GTAH
AUXK034GTAH
AUXK036GTAH
AUXK045GTAH
AUXK054GTAH

Models: AUXM018 / AUXM024

Models: AUXK018 / AUXK024 / AUXK030 / AUXK034 / AUXK036 / AUXK045 / AUXK054

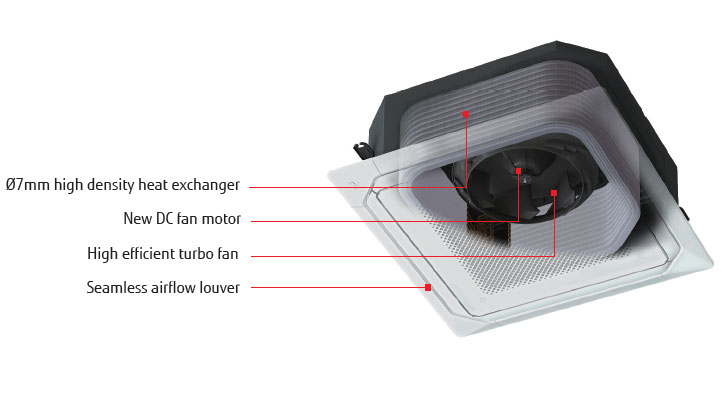

Unique Circular Flow design

New Cassette type realizes Circular Flow to blow large airflow in 360º direction by mounting high performance DC fan motor, new turbo fan and unique seamless airflow louver design.

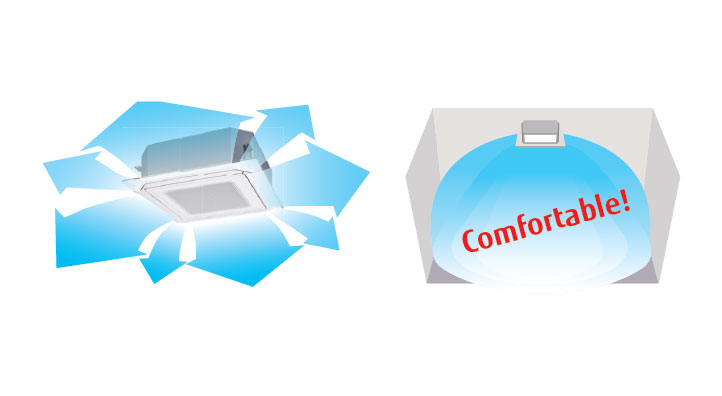

Uniform temperature air conditioning

Achieve a comfortable air conditioning spread to every corner of the room by circular flow & wide vertical airflow.

Individual louver control

Each louver can be set individually by Touch Panel Wired Remote Controller to enjoy the comfort of different directional airflows according to various room layouts.

* Touch Panel Wired RC (UTY-RNRGZ2) only

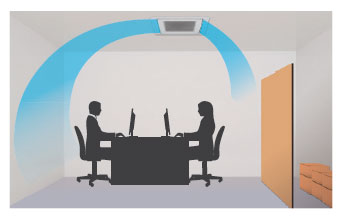

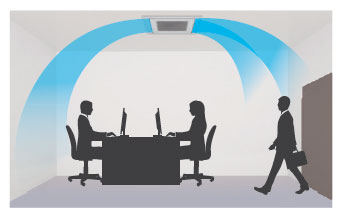

Comfortable air conditioning by preventingdirect blowing of cold air and by providingswinging air flow simultaneously.

Efficient air conditioning based on the room layout.

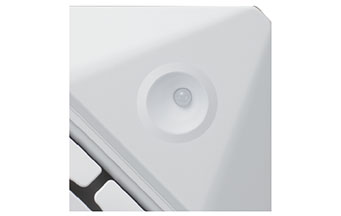

Human sensor increases more energy saving

Energy saving operation starts automatically by detecting the motion of a person. 2 modes of save operation mode and stop mode can be selected.

* Touch Panel Wired RC (UTY-RNRGZ2) only

Human sensor (Option)

2 modes can be selected.

Efficient air conditioning based on the room layout.

Auto saving :

Power is saved while people are away.

Auto OFF :

Operation stops after people go out.

Optional parts

Human Sensor Kit :

UTY-SHZXC

Wide Panel :

UTG-AKXA-W

Panel Spacer :

UTG-BKXA-W

Air Outlet Shutter Plate :

UTR-YDZK

Insulation Kit for High Humidity :

UTZ-KXRA

Cassette Grille :

UTG-UKGD-W, UTG-UKGA-B

IR Receiver Unit :

UTY-LBHXD
