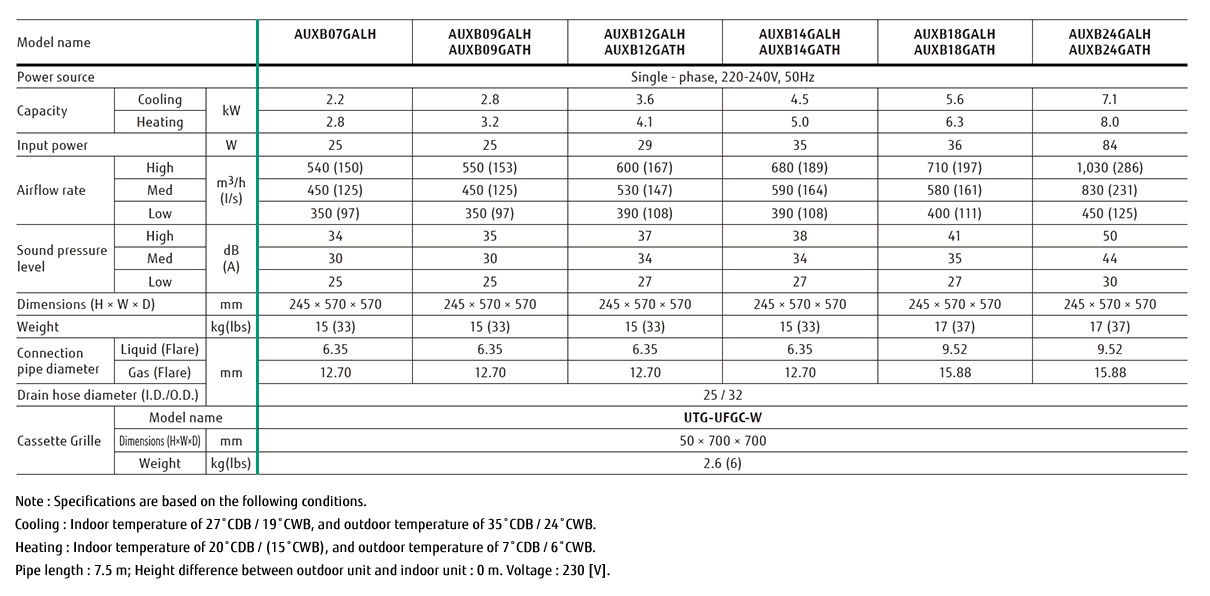

Model

220-240V Single-Phase
AUXB07GALH
AUXB09GALH / AUXB09GATH
AUXB12GALH / AUXB12GATH
AUXB14GALH / AUXB14GATH
AUXB18GALH / AUXB18GATH
AUXB24GALH / AUXB24GATH

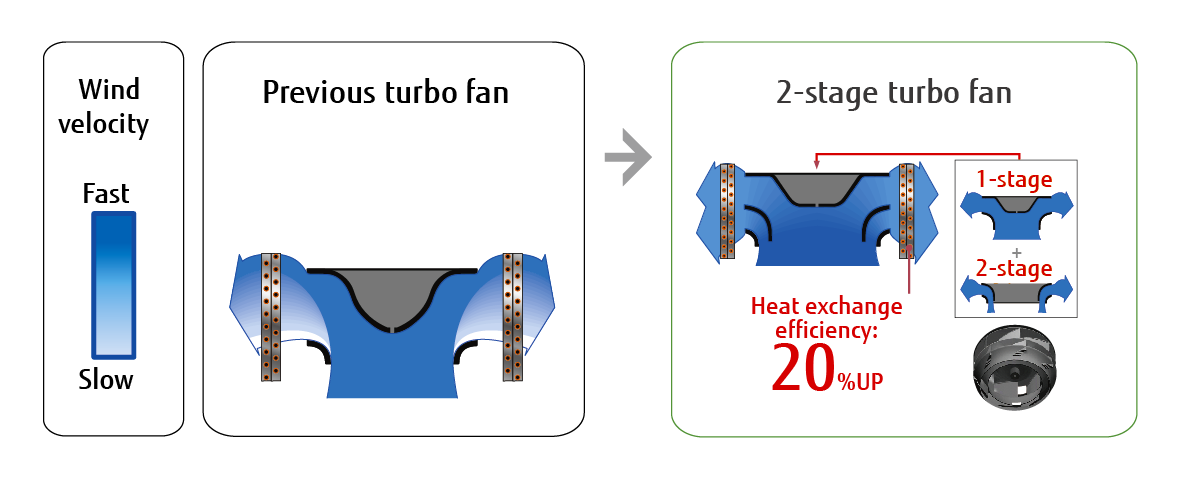

2-stage turbo fan

High efficiency design by 2 stage structure

An evenly spread air distribution across the heat exchanger is possible due to the new 2 stage turbo fan which produces two separate airflow streams.

Previous turbo fan

In the case of a previous fan, the air outlet range was narrow as the airflow moved to the motor side which meant the velocity of air passing through the heat exchanger was uneven.

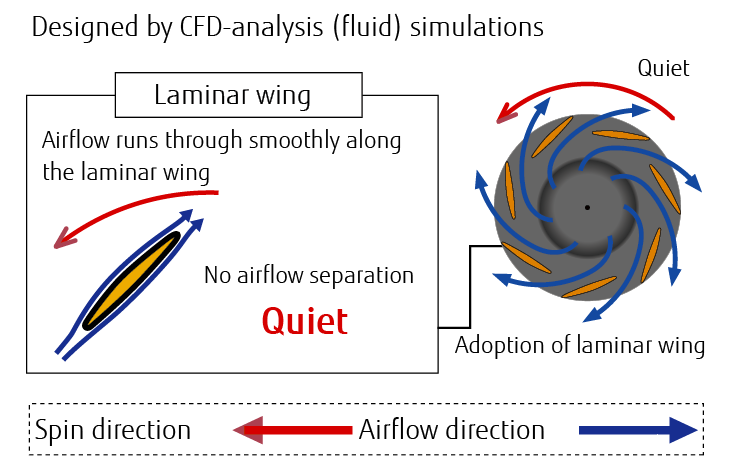

Optimization of wing form (laminar wing type) and wing number (7 blades each)

Designed by CFD-analysis (fluid) simulations

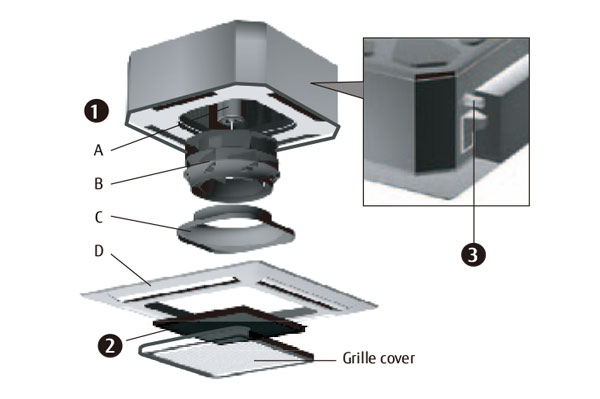

1 : Maintenance of fan motor and fan

Maintenance of fan motor and fanMaintenance of the fan motor and fan can be done easily after taking off the panel as the bell mouth of the fan can be removed easily.

A : Fan motor

B : 2-stage turbo fan

C : Bell-mouth

D : Panel

2 : Air filter

standard equipment

3 : Adaptation of transparent drainage parts

During installation, maintenance and operation, the drain pump and kit can be checked easily.

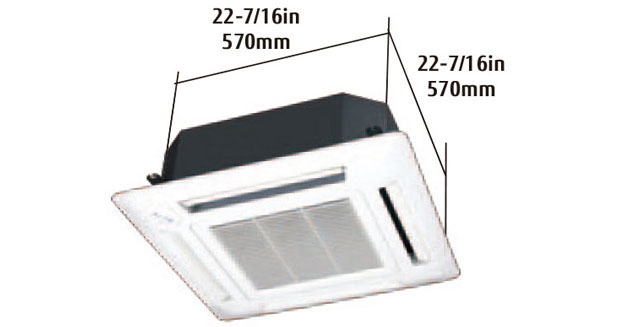

Compact design

Worlds first 24,000Btu model in the compact cassette category

(Easy installation by taking off ceiling panel of 600 x 600 size)

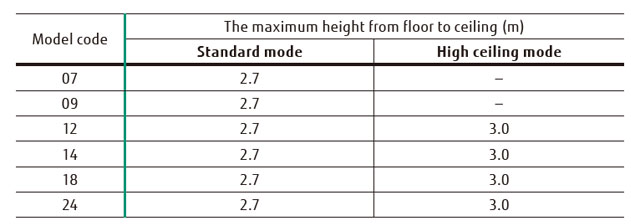

High ceiling mode

The compact cassette can be installed up to a height of 3.0m (12/14/18/24).

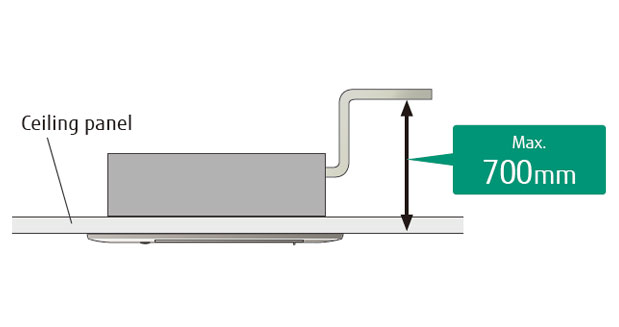

High lift drain pump

Optional parts

Air Outlet Shutter Plate :

UTR-YDZB

Insulation Kit for High Humidity :

UTZ-KXGC
