VRF Systems Indoor Unit Wall Mounted

Download :
Catalog

Model (EEV internal)

220-240V Single-Phase
ASGA07GACH / ASGA07GATH
ASGA09GACH / ASGA09GATH
ASGA12GACH / ASGA12GATH
ASGA14GACH / ASGA14GATH

Model (EEV external)

220-240V Single-Phase
ASGE07GACH
ASGE09GACH
ASGE12GACH
ASGE14GACH

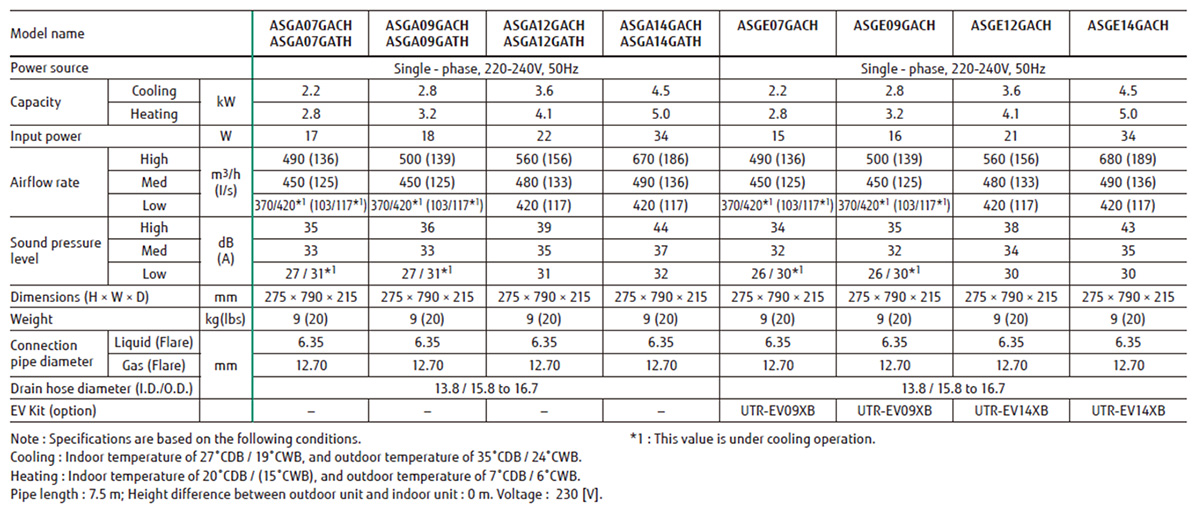

Specifications

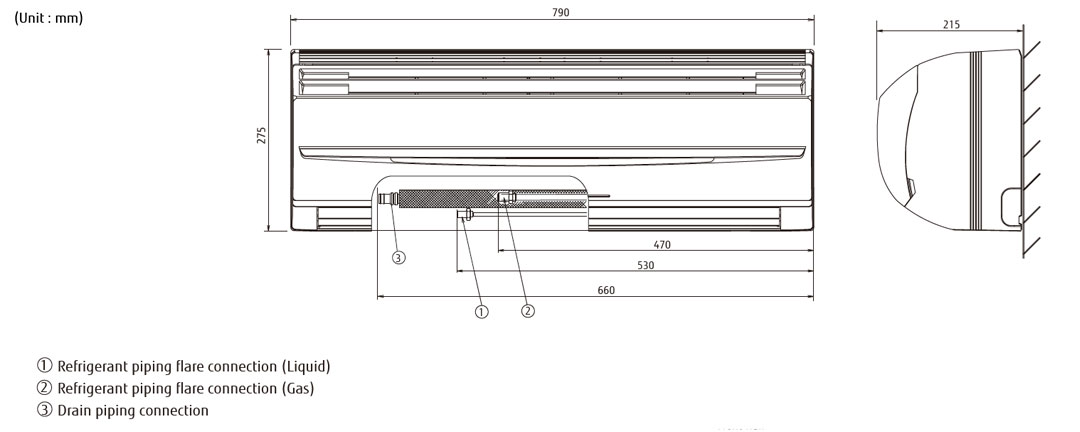

Dimensions

Feature

Filter features

High performance filter provides high quality air conditioning

Long-life* Ion Deodorization Filter

The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by the ultra-fine particle ceramic.

(*The filter can be used for approx. 3 years if it is washed under water to restore its surface action when it is dirty.)

Apple-catechin Filter

Fine dust, invisible mold spores, and harmful microorganisms are absorbed onto the filter by static electricity, and further growth is inhibited and deactivated by the polyphenol extracted from apples.

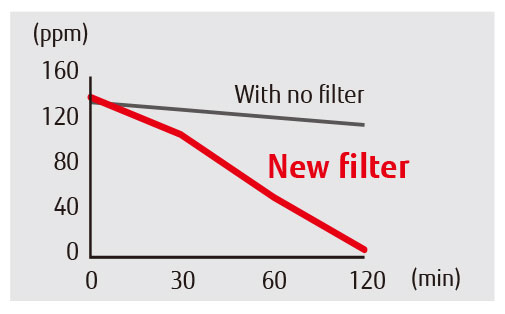

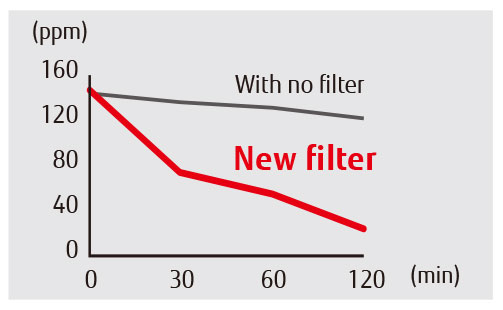

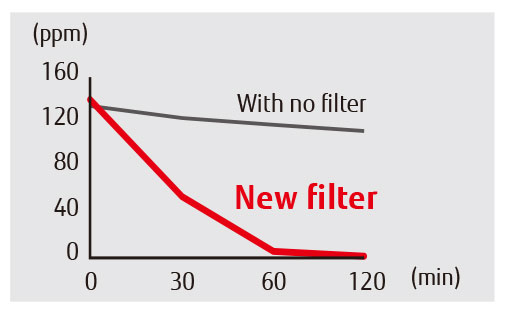

Deodorizing effect (Odor reduction rate)

High performance filters have been thoroughly tested by the Environmental Sanitary Inspection Center using an advanced Deodorization Test.

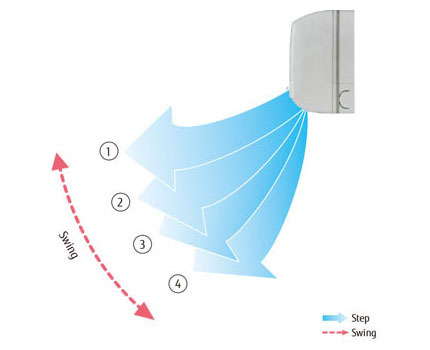

Auto swing louver

The Auto Swing Louver function ensures that the air direction corresponds to the mode selected.

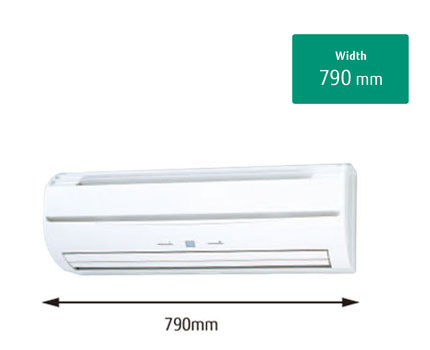

Compact size

Powerful output even compact design

Though the indoor unit is compact, it features a large, high pressure cross fan (90mm diameter) in a centre mounted configuration and a Lambda type heat exchanger to provide plenty of power.

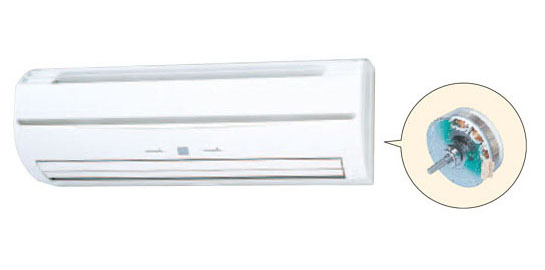

High power DC fan motor

  • High power
  • Wide rotation range
  • High efficiency
  • Compact size

Easy maintenance

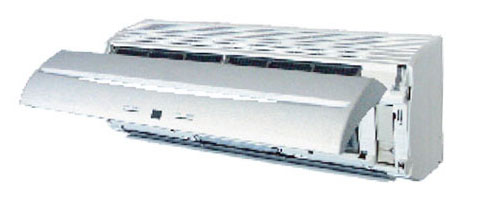

Open panel

Easy maintenance has been realized as the front panel can removed for easy access.

Symmetrical design

Symmetrical, clean design that suits all interiors.
