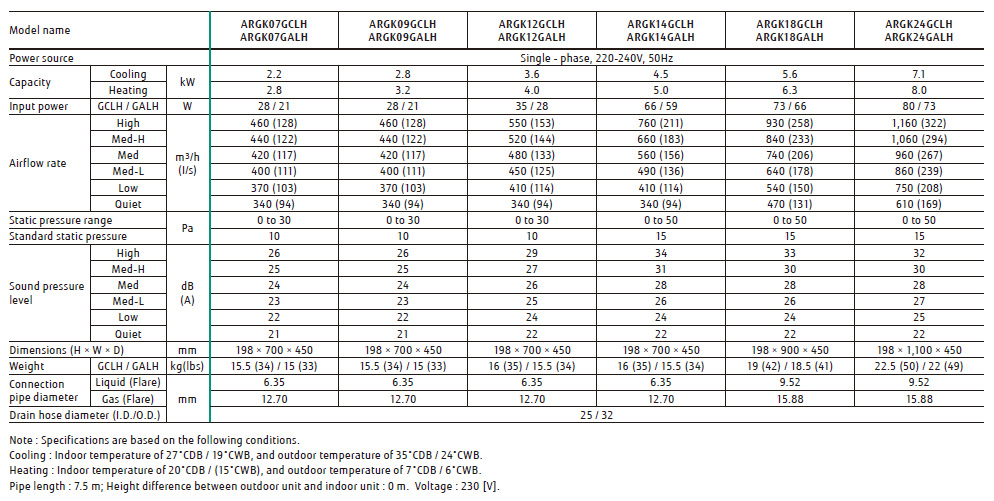

Specifications

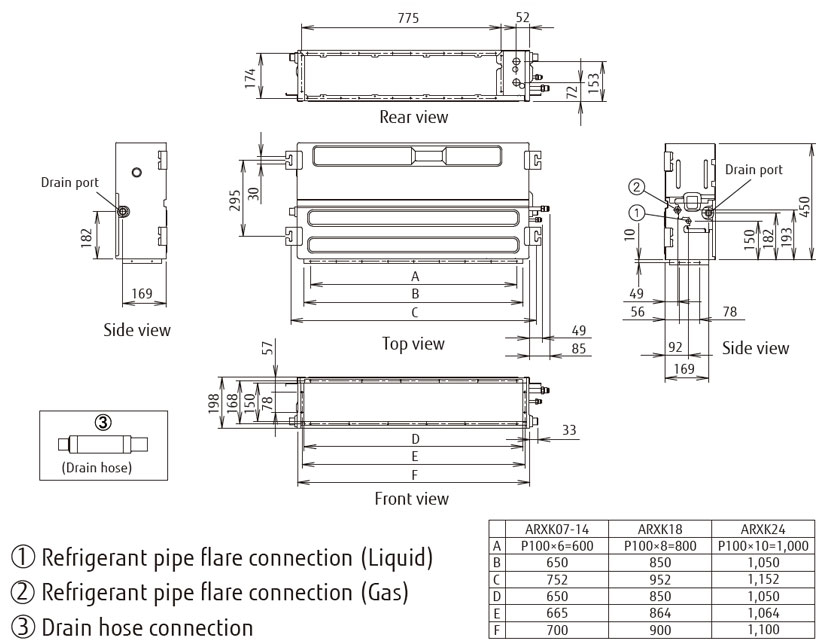

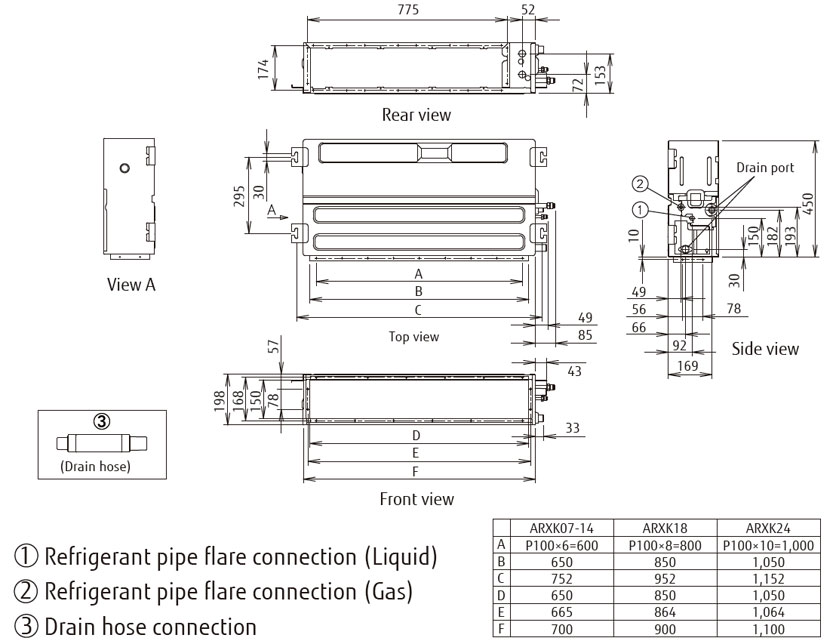

Dimensions

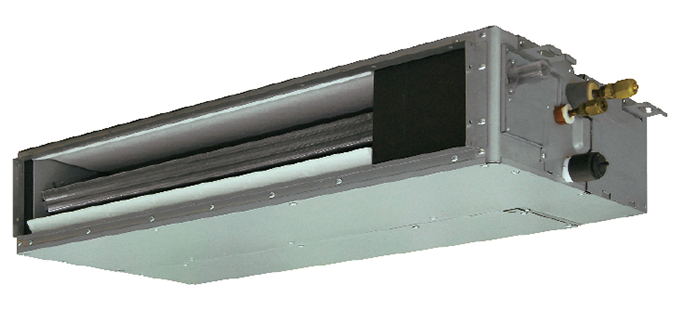

Models: ARGK07GCLH / ARGK09GCLH / ARGK12GCLH / ARGK14GCLH / ARGK18GCLH / ARGK24GCLH

Models: ARGK07GALH / ARGK09GALH / ARGK12GALH / ARGK14GALH / ARGK18GALH / ARGK24GALH

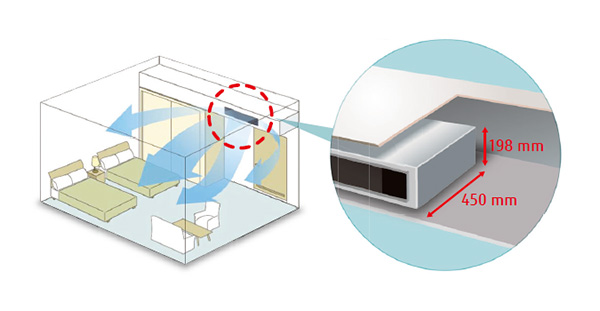

Optimum design in harmony with interior decoration

Thin and short-depth body makes the clipped ceiling design simple.

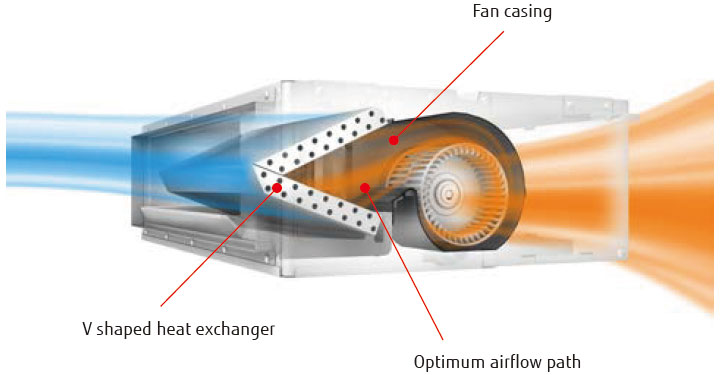

Advanced performance by new shaped heat exchanger and airflow

Air blower is improved so that velocity distribution is optimum in accordance with the heat exchanger shape. Wide range and uniform airflow can be received due to heat exchanger.

Easy drain design even at narrow ceiling

Models with drain pump

Drainage to the distant drain port is possible.
For models with drain pump, drain design is easy even at narrow ceiling.

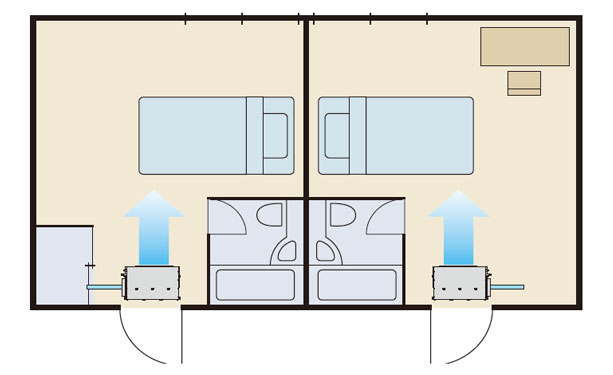

Models without drain pump

Both sides drainage is possible.
For models without drain pump, both sides drainage is possible and drain design is easy.

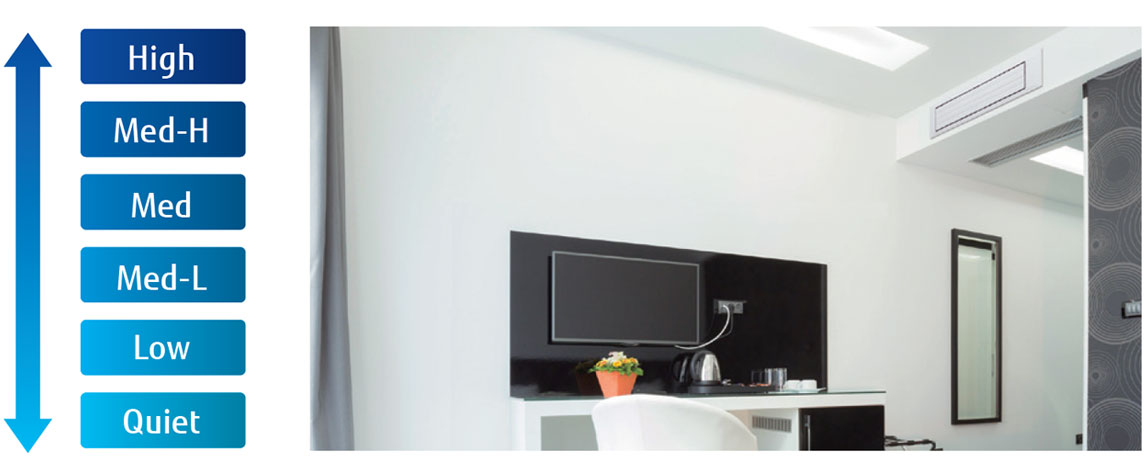

6-speed control*

Multistep airflow speed control allows this model to install in a quiet location.

Low noise 21 dB(A) at 07/09models

* Compatible Remote Controller is as follows :

UTY-RNRGZ2 / UTY-RLRG / UTY-RSRG / UTY-RHRG / UTY-DCGG / UTY-DTGGZ1 / UTY-ALGXZ1 / UTY-APGXZ1

6-Step Speed

Optional parts

Remote Sensor Unit :

UTY-XSZX

IR receiver unit :

UTB-YWC

Auto louver grille kit :

UTD-GXTA-W (for ARGK07/09/12/14GCLH, ARGK07/09/12/14GALH)
UTD-GXTB-W (for ARGK18GCLH, ARGK18GALH)
UTD-GXTC-W (for ARGK24GCLH, ARGK24GALH)
