VRF Systems Indoor Unit Large Airflow Duct (Large type)
- Download :
-
Catalog
Model
| 220-240V Single-Phase | |
|---|---|
| ARGN18GATH | |
| ARGN24GATH | |
| ARGN30GATH | |
| ARGN34GATH | |
| ARGN36GATH | |
| ARGN45GATH | |

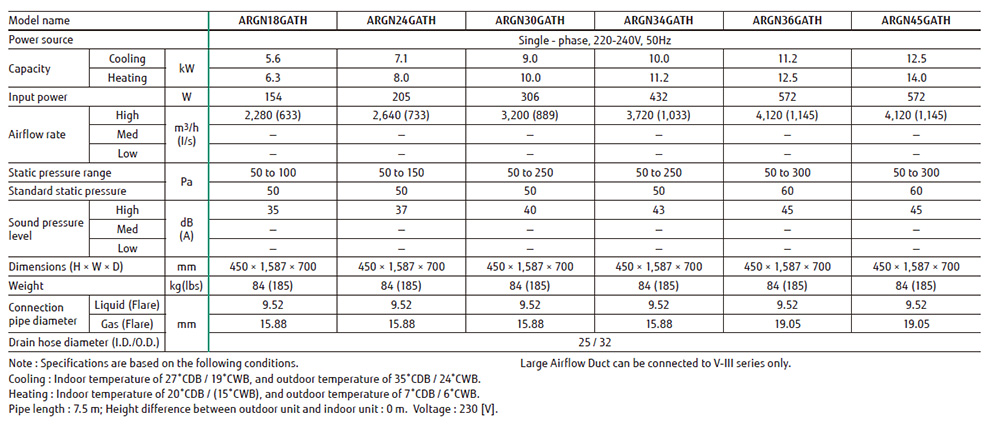

Specifications

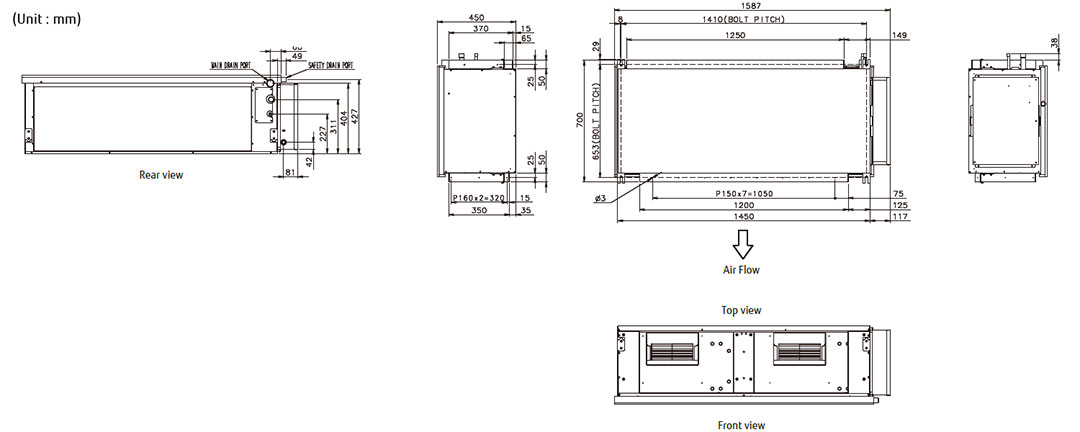

Dimensions
Feature

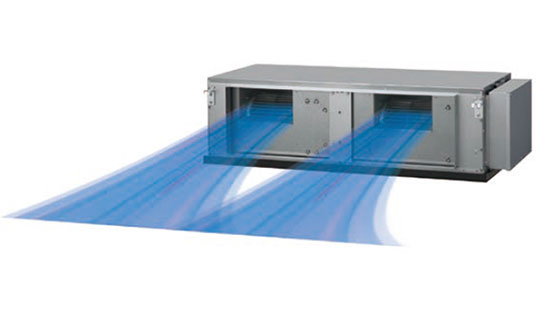

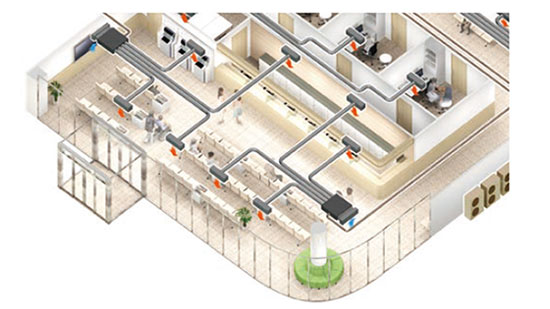

Large airflow volume
It can be installed in places such as early replacement of air required by large airflow volume.

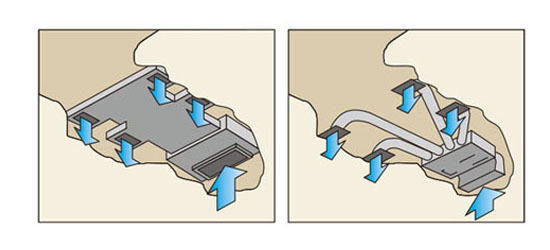

Installation styles
Selectable with a wide range of static pressure
static pressure range 50 to 250 Pa(30 / 34class)
static pressure range 50 to 300 Pa(36 / 45class)
Optional parts
- Remote Sensor Unit :
- UTY-XSZX
