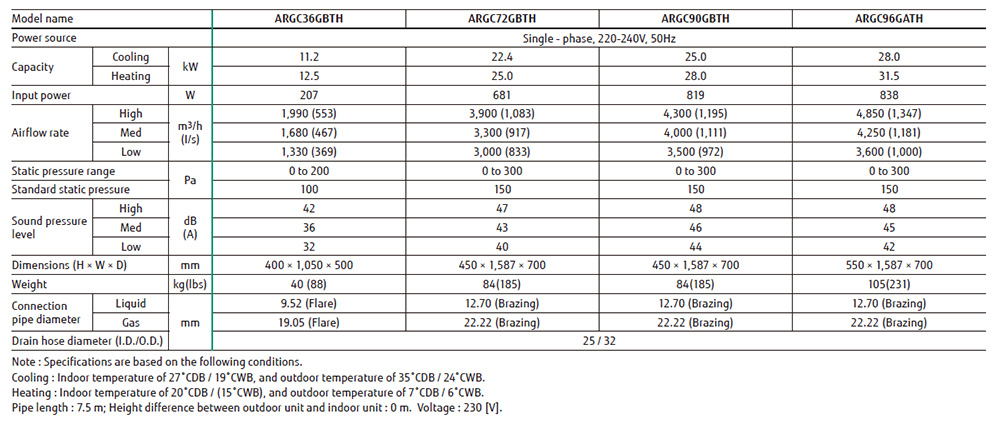

Specifications

Dimensions

Models: ARGC36

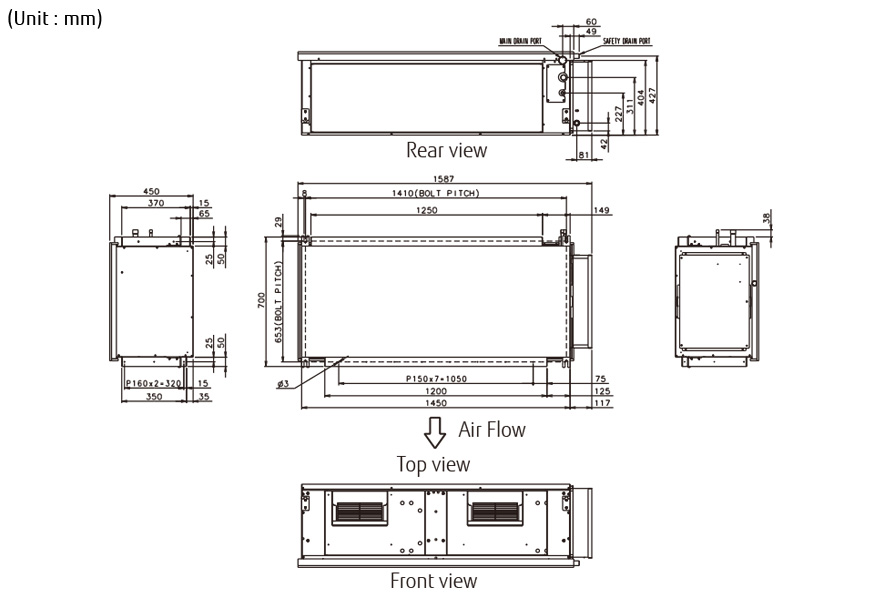

Models: ARGC72 / ARGC90

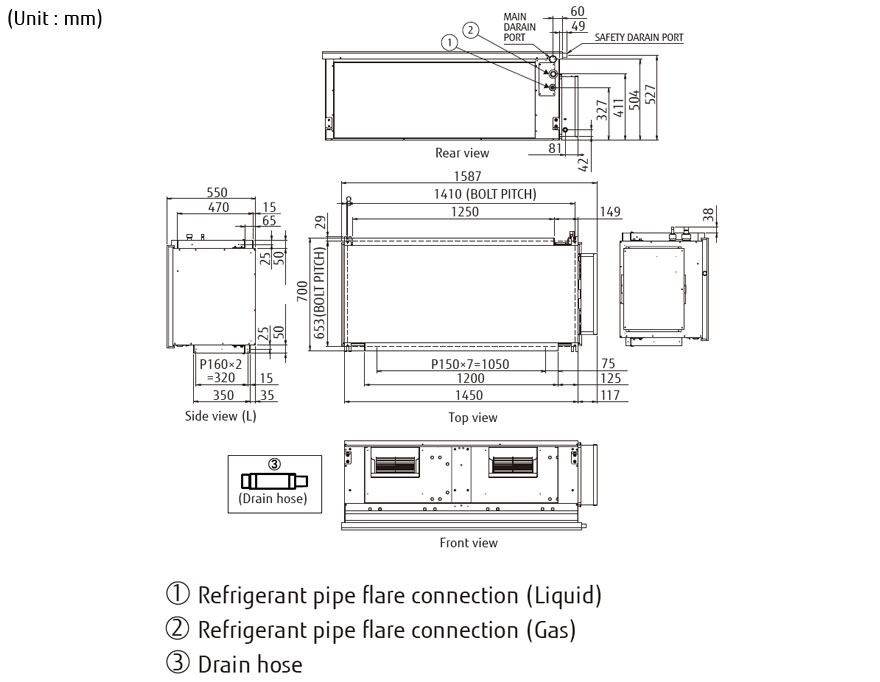

Models: ARGC96

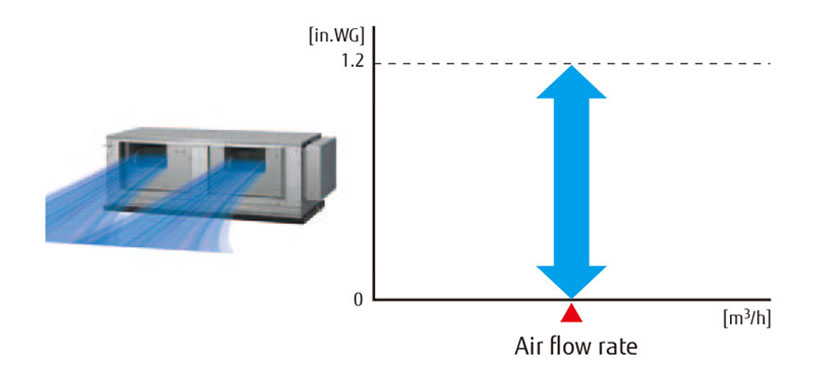

Static pressure selection

By using DC fan motor, it is possible to change static pressure range from 0 to 200Pa (ARGC36) / 300Pa (ARGC72 / 90 / 96).

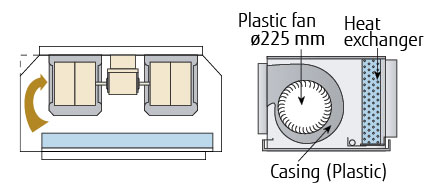

Low noise

Models : ARGC36

Cutting off the corners of the conventional indoor unit front panel and fan casing, has enabled less turbulent air flow. Low noise is realized by adopting a plastic case and a plastic fan.

ARGC36GBTH : Plastic fan [42dB(A)]

* Model : Material (At 100Pa : Actual noise measurement value)

Low energy consumption by high efficiency DC fan motor

Improved motor efficiency from previous model.

(ARGC36 type)

(ARGC72 / 90 / 96 type)

Easy installation (Compact size & Lightweight)

A compact size and lightweight indoor unit has been developed by reducing the basic chassis and the overall material weight.

Optional parts

Long-Life Filter :

UTD-LF60KA (For ARGC36GBTH)

IR Receiver Unit :

UTB-YWC

Remote Sensor Unit :

UTY-XSZX
