VRF Systems Indoor Unit 4-way Flow Cassette (Large type)
- Download :
-
Catalog
Model
| 220-240V Single-Phase | |
|---|---|
| AUGA18GALH | |
| AUGA24GALH | |
| AUGA30GALH | |
| AUGA34GALH | |
| AUGA36GALH | |
| AUGA45GALH | |
| AUGA54GALH | |

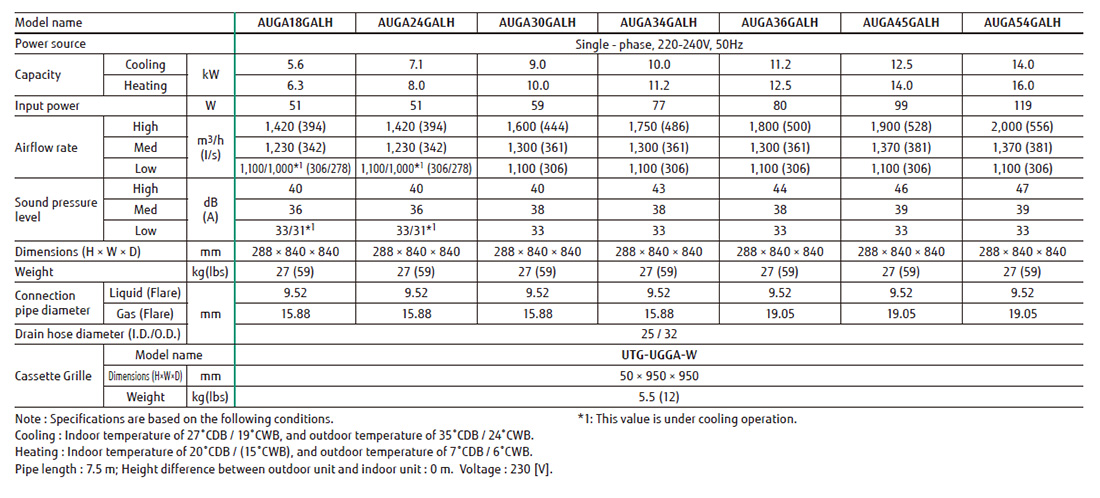

Specifications
Dimensions
Feature
High efficiency turbo fan with 3-dimensional blade
High efficiency airflow distribution has been achieved by the introduction of a 3 dimensional blade which increases the air passing over the heat exchanger.
Improvement of the airflow distribution
The louver design distributes air leaving a space between the chassis and the ceiling allowing far and wide air flow distribution.
Much less temperature irregularity happens by spreading airflow widely
High ceiling mode
High ceiling mode
This cassette can be installed up to a height of 4.2m (36/45/54).
One way installation
High lift drain pump
Optional parts
- IR Receiver Kit :
- UTY-LRHGB1
- Air Outlet Shutter Plate :
- UTR-YDZK
- Panel Spacer :
- UTG-BKXA-W
- Insulation Kit for High Humidity :
- UTZ-KXRA
- Wide Panel :
- UTG-AKXA-W
