VRF Systems Indoor Unit Compact Cassette

Download :
Catalog

Model

220-240V Single-Phase
AUGB07GALH / AUGB07GATH
AUGB09GALH / AUGB09GATH
AUGB12GALH / AUGB12GATH
AUGB14GALH / AUGB14GATH
AUGB18GALH / AUGB18GATH
AUGB24GALH / AUGB24GATH

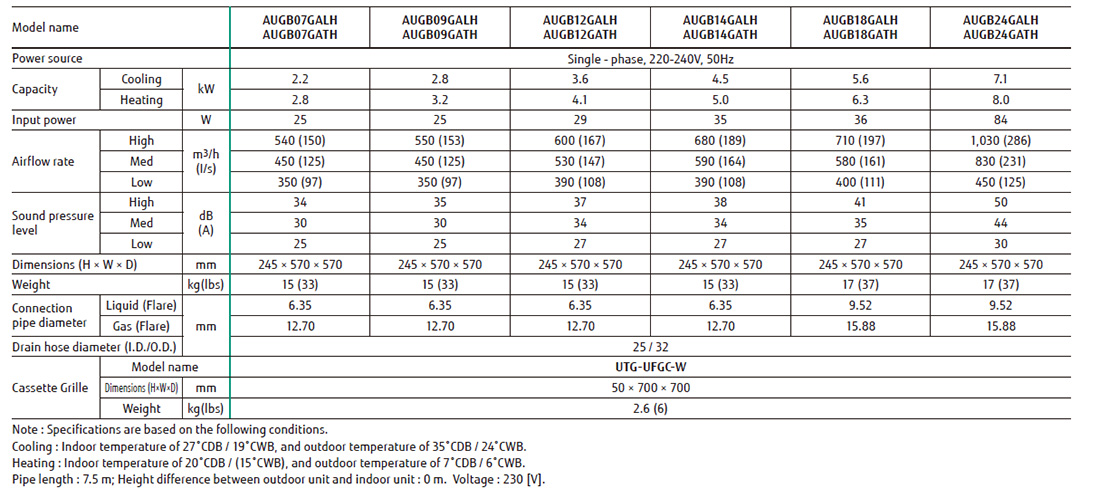

Specifications

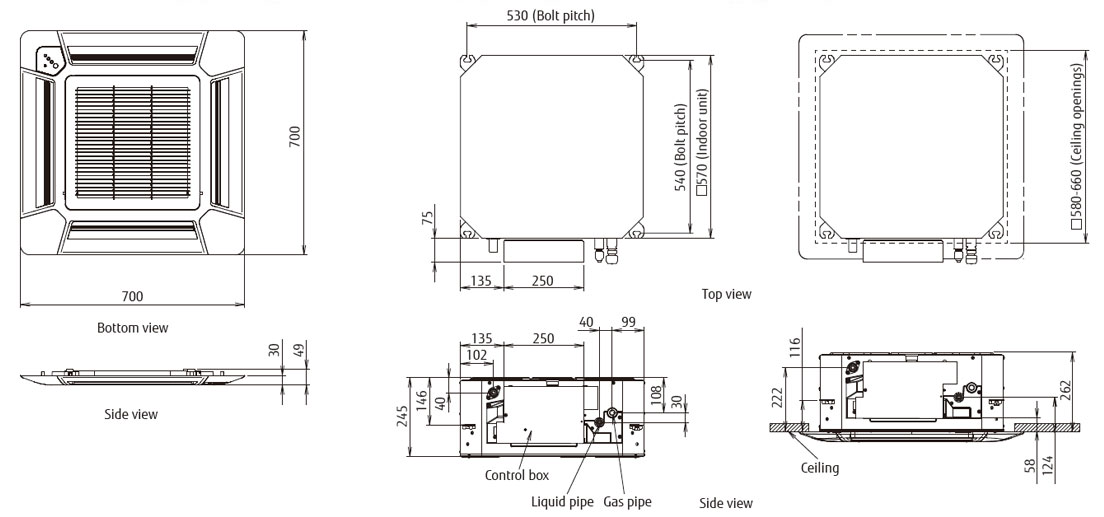

Dimensions

Feature

2-stage turbo fan

High efficiency design by 2 stage structure

An evenly spread air distribution across the heat exchanger is possible due to the new 2 stage turbo fan which produces two separate airflow streams.

Previous turbo fan

In the case of a previous fan, the air outlet range was narrow as the airflow moved to the motor side which meant the velocity of air passing through the heat exchanger was uneven.

Quiet quality

Optimization of wing form (laminar wing type) and wing number (7 blades each)

Designed by CFD-analysis (fluid) simulations

Improvement of airflow distribution

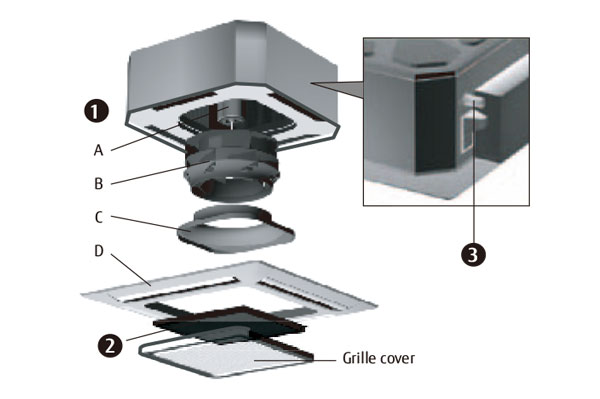

1 : Maintenance of fan motor and fan
Maintenance of the fan motor and fan can be done easily after taking off the panel as the bell mouth of the fan can be removed easily.
A : Fan motor
B : 2-stage turbo fan
C : Bell-mouth
D : Panel
2 : Air filter
standard equipment
3 : Adaptation of transparent drainage parts
During installation, maintenance and operation, the drain pump and kit can be checked easily.

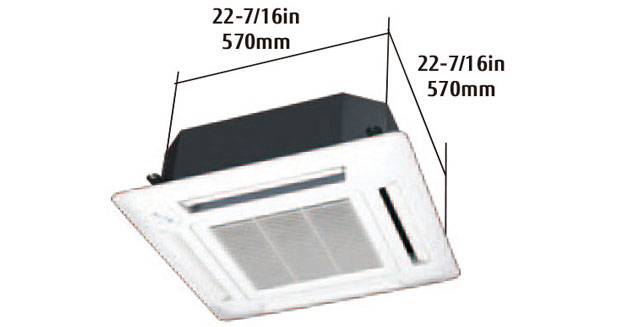

Compact design

Worlds first 24,000Btu model in the compact cassette category

(Easy installation by taking off ceiling panel of 600 x 600 size)

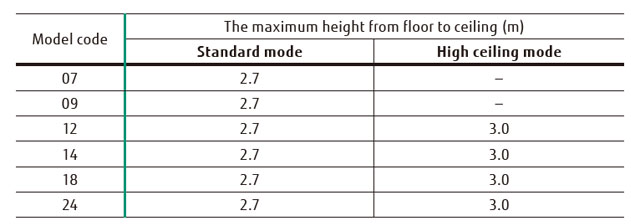

High ceiling mode

The compact cassette can be installed up to a height of 3.0m (12/14/18/24).

High lift drain pump

Optional parts

Air Outlet Shutter Plate :
UTR-YDZB
Insulation Kit for High Humidity :
UTZ-KXGC
